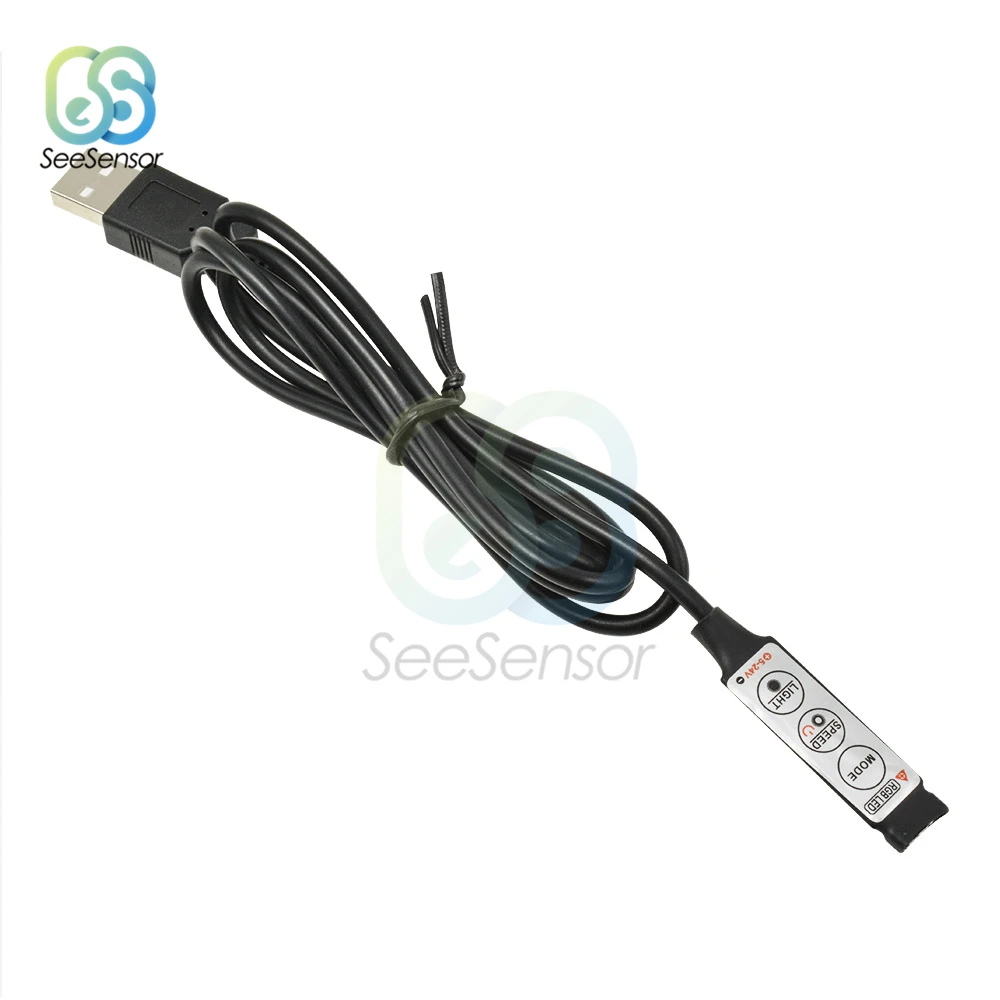

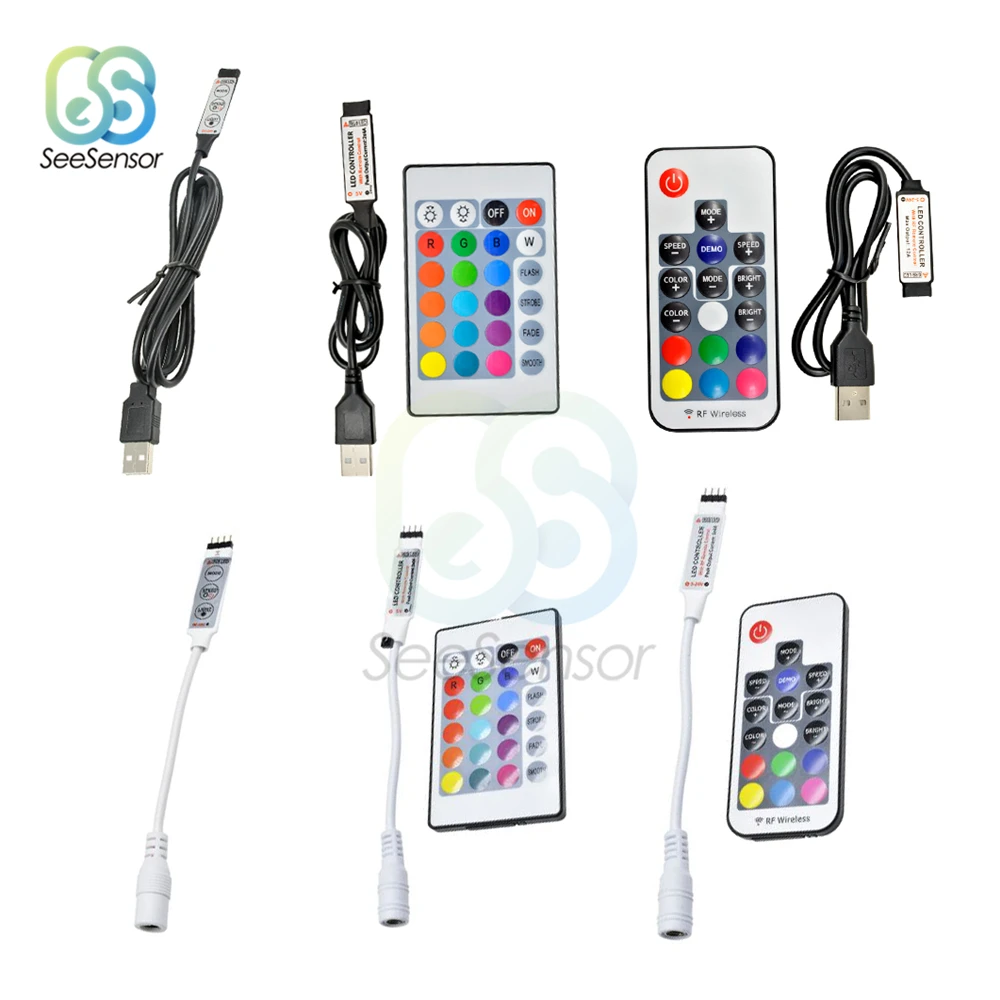

3 Key
Voltage: DC 5V
Working Temperature: -20°C-60°C

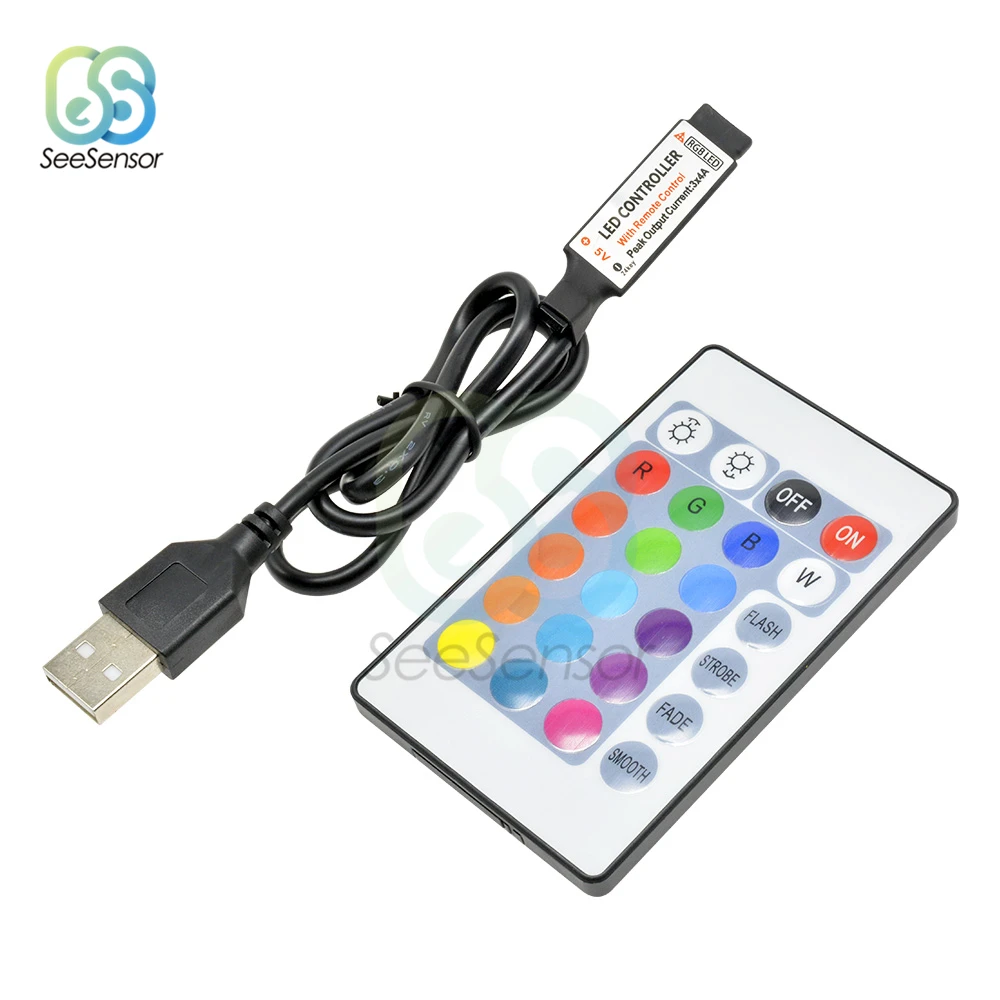

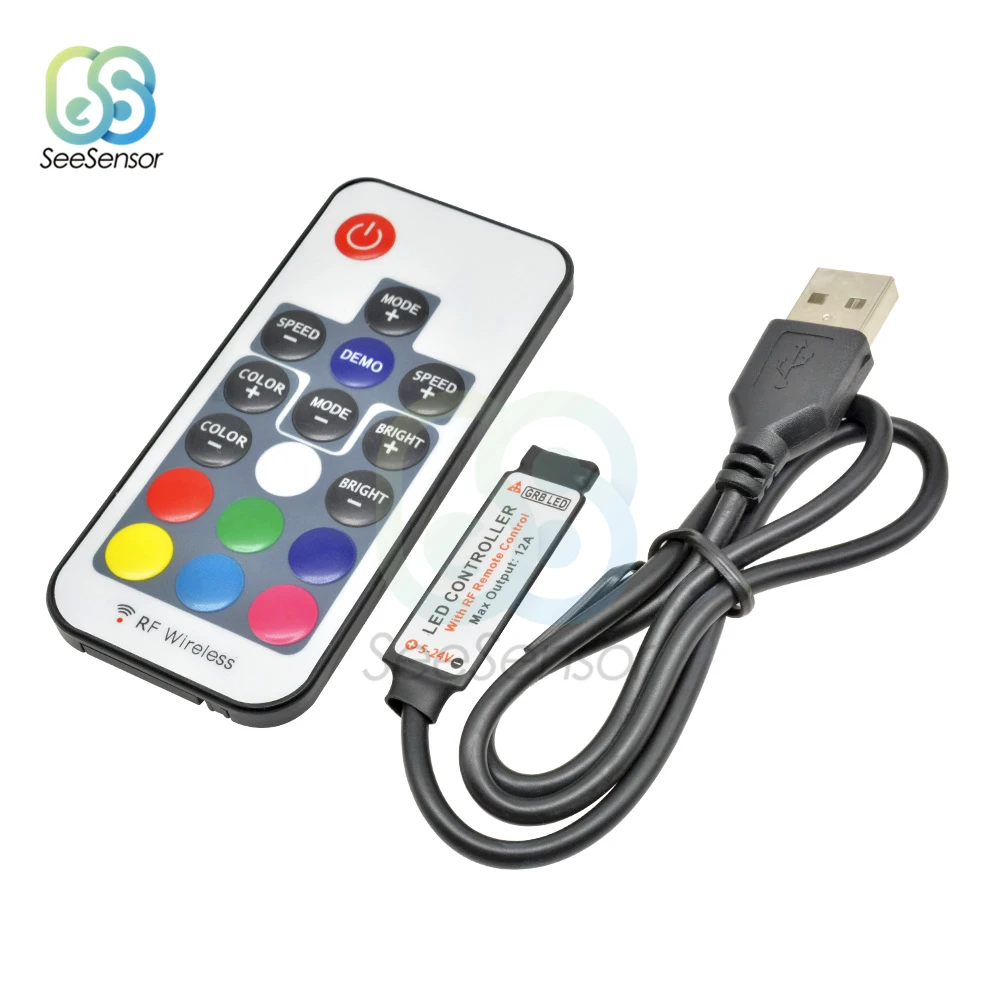

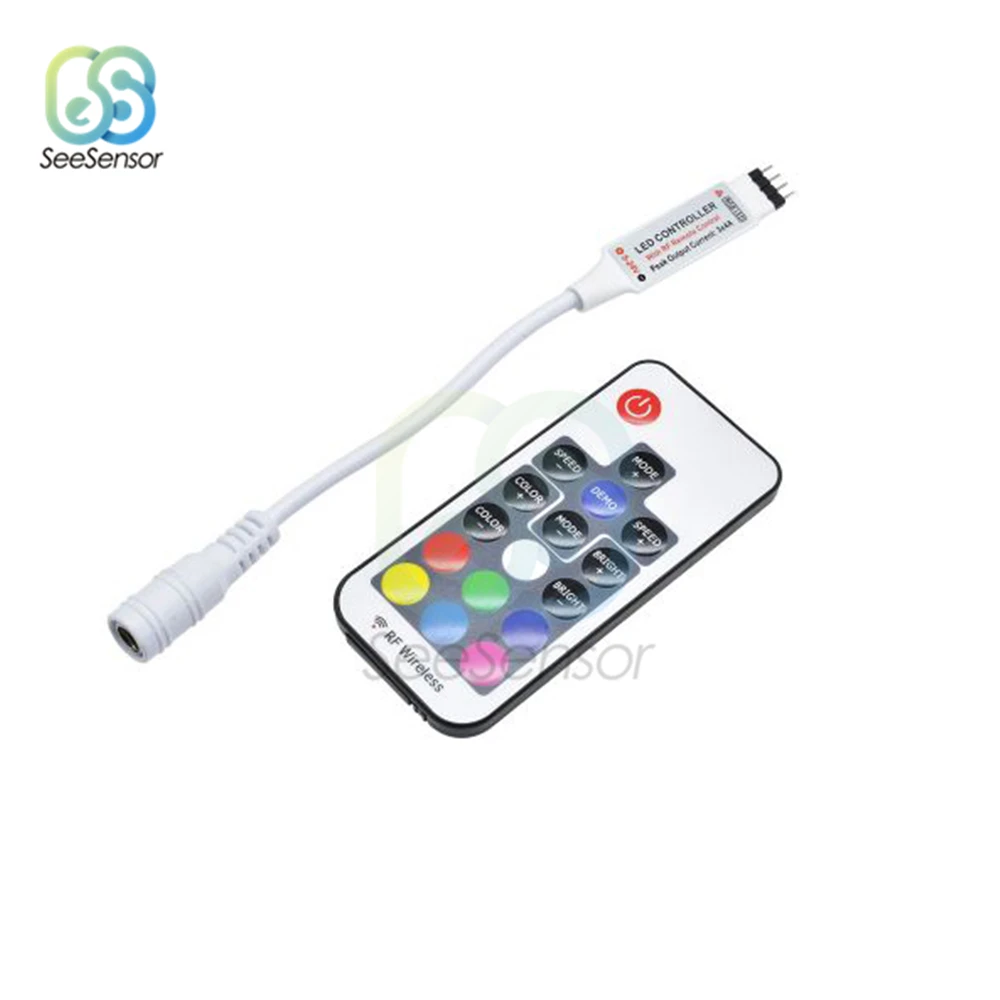

17 Keys
This product is an accessory product for the LED light bar RGB controller, which is used to control the brightness of various LED lighting as a light source. It has manual adjustment to adjust the brightness of the light, and the wiring is convenient, simple and intuitive.
1. Voltage: DC5-24V
2. Maximum output: 3X4A
3. Power consumption: <0.5W
4. Working temperature: -20 ~ +60 ° C
5. Power output: 5V-60W, 12V-144W, 24V-288W
6. Dynamic mode: mode 22
7. Static color: 20 colors
8.PWM level: 256 levels
9. Brightness level: 5
10. Speed rating: 10
11. Weight: 30 grams
12. RGB controller and power outlet.
13. Small, safe to use and easy to operate.
14. Can be used for SDM3528 LED strips, patch 5050 LED strips, colorful strips
How to adjust the line order:
The controller’s default output signal sequence is green-red-blue; if the light bars are in different line order, the selected color will not match the color of the light bar. In this case, the user can adjust the color sequence by following these steps:
Power off for 5 seconds and then power on;
Press the “red selection button” + “blue selection button” for 5 seconds while power is on;
By doing this, you can adjust the 6 line sequences to adjust to the line order that matches the light bar.
The line order is automatically saved until the next same operation.
In order to receive the remote control signal well, please do not install the controller in a closed metal device (the shielding effect will occur in the sealed metal material)
Pairing a new remote
The remote control and receiver are matched one-to-one by default. One receiver can be paired by three remote controllers. In addition, each remote controller can be paired with multiple receivers. Pair the new controller as follows:
Reconnect after 5 seconds after power off;
Press “SPEEO-” and “SPEEO+” simultaneously for 5 seconds after power-on;
Once operated, the receiver can be paired with the new remote.
Cancel the code method:
In some cases, a receiver needs to be paired with any remote control. Please follow the steps below.
Re-energize 5 seconds after power off
Press the “ON/OFF” and “MODE+” buttons simultaneously for 5 seconds after power-on.
After operation, this receiver can be paired with any remote control (ie any remote control can control this receiver)
If the receiver and a remote control are paired back and forth one by one, the second operation mode can be operated.

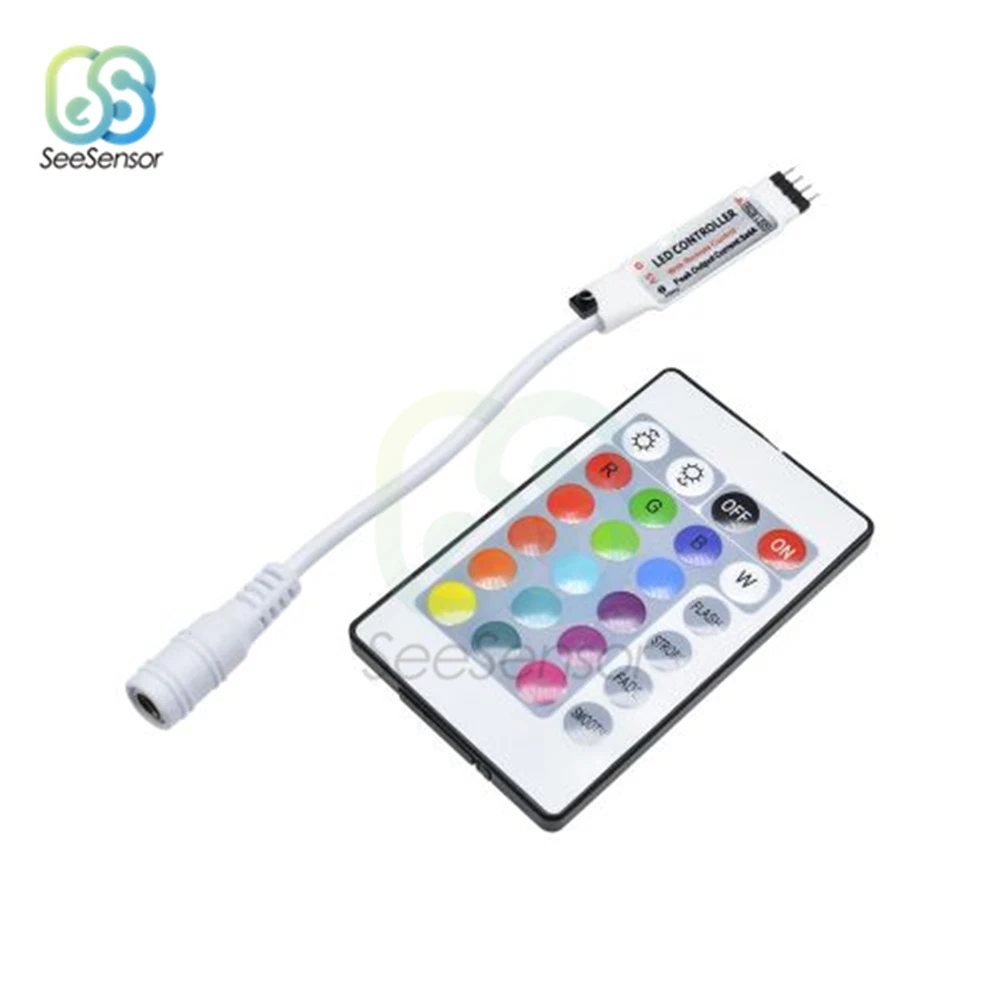

24 Keys
product description:
The 24-key infrared MINI controller uses advanced computer controller chips for various LEDs with LEDs as light sources, such as: point light source, soft light strip, wall washer, glass curtain wall light, etc.; low cost and convenient wiring , easy to use and so on. The 24-key MINI controller can be used for line sequence setting via infrared remote control; brightness adjustment, static color selection and various dynamic light changes.
Technical Parameters:
Working temperature: -20-60 °C
Supply voltage: 12V-24V (wide pressure)
Output: 3 loop
Net weight: 55g
Product size: L42ΧW12ΧH3 mm
Remote control size: L85*W52*H7 mm
Static power consumption: <1W
Maximum load current: 2A per way
Output power: 12V<72W, 24V<144W
